Multi Type Stack Peltier（Accept Non-Standard Manufacturing）

型号/Part Model

电堆/Stack

电流/A

电压/V

冷量/Q

温差/△T

尺寸/A

尺寸/B

规格书/SPEC.

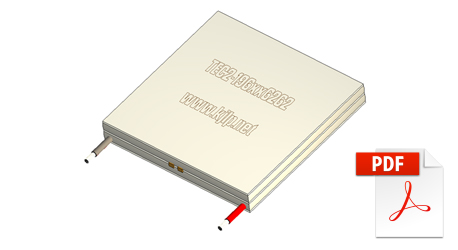

TEC2-196xx6262

196 P&N

9~12 A

16 V

56~66 W

85 ºC

62mm

62mm

Part NO.:	TEC2-196096262 TEC2-196126262

型号/Part Model

电堆/Stack

电流/A

电压/V

冷量/Q

温差/△T

尺寸/A

尺寸/B

规格书/SPEC.

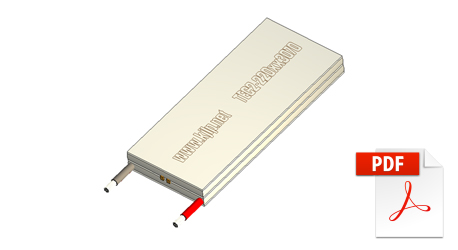

TEC2-220xx3070

220 P&N

4 A

13 V

38 W

85ºC

30mm

70mm

Part NO.:	TEC2-220043070

型号/Part Model

电堆/Stack

电流/A

电压/V

冷量/Q

温差/△T

尺寸/A

尺寸/B

规格书/SPEC.

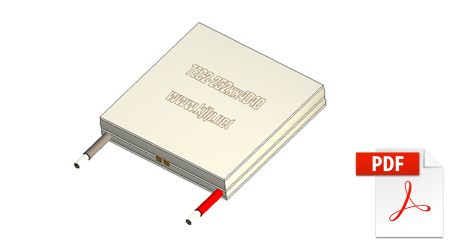

TEC2-252xx4040

252 P&N

6~8 A

15.8 V

29~45 W

83ºC

40mm

40mm

Part NO.:	TEC2-252064040 TEC2-252074040 TEC2-252084040

型号/Part Model

电堆/Stack

电流/A

电压/V

冷量/Q

温差/△T

尺寸/A

尺寸/B

规格书/SPEC.

TEC2-396xx4040

396 P&N

10 A

24.6 V

98.8 W

94ºC

40mm

40mm

Part NO.:	TEC2-396104040

型号/Part Model

电堆/Stack

电流/A

电压/V

冷量/Q

温差/△T

尺寸/A

尺寸/B

规格书/SPEC.

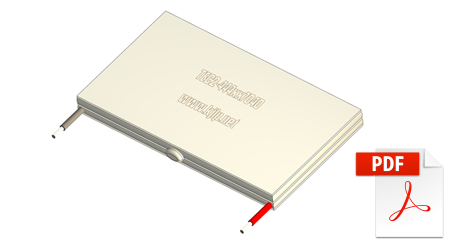

TEC2-444xx7040

444 P&N

11~15 A

28.2 V

108~149 W

94ºC

70mm

40mm

Part NO.:	TEC2-444117040 TEC2-444137040 TEC2-444157040

型号/Part Model

电堆/Stack

电流/A

电压/V

冷量/Q

温差/△T

尺寸/A

尺寸/B

规格书/SPEC.

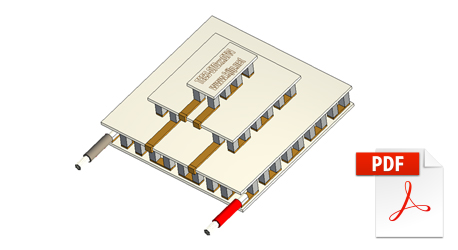

TEC3-070xx0714

070 P&N

7 A

8.7 V

8.5 W

100ºC

7mm

14mm

Part NO.:	TEC3-070070714

型号/Part Model

电堆/Stack

电流/A

电压/V

冷量/Q

温差/△T

尺寸/A

尺寸/B

规格书/SPEC.

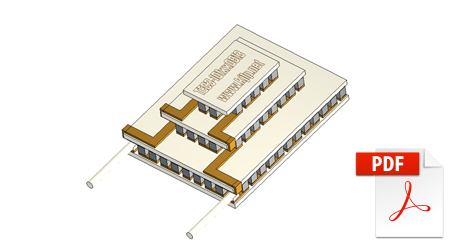

TEC3-101xx0913

101 P&N

5.8 A

7.5 V

5.9 W

103ºC

8.61mm

13mm

Part NO.:	TEC3-101060913

型号/Part Model

电堆/Stack

电流/A

电压/V

冷量/Q

温差/△T

尺寸/A

尺寸/B

规格书/SPEC.

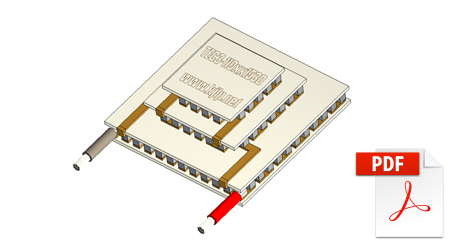

TEC3-119xx1530

119 P&N

2~6 A

8.7 V

3.5~10 W

90ºC

S15mm

S30mm

Part NO.:	TEC3-119021530 TEC3-119041530 TEC3-119061530

型号/Part Model

电堆/Stack

电流/A

电压/V

冷量/Q

温差/△T

尺寸/A

尺寸/B

规格书/SPEC.

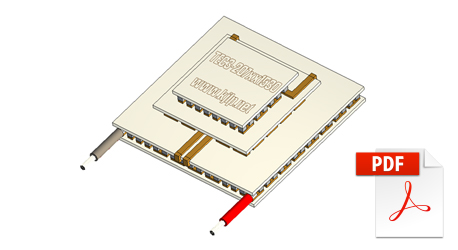

TEC3-207xx1530

207 P&N

2 A

13 V

10 W

96ºC

S15mm

S30mm

Part NO.:	TEC3-207021530

型号/Part Model

电堆/Stack

电流/A

电压/V

冷量/Q

温差/△T

尺寸/A

尺寸/B

规格书/SPEC.

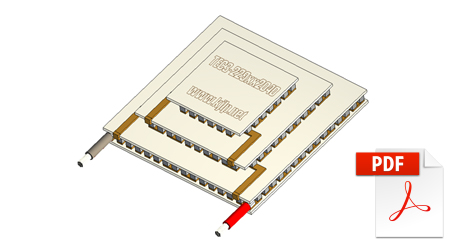

TEC3-229xx2040

229 P&N

3 A

16 V

12 W

95ºC

S20mm

S40mm

Part NO.:	TEC3-229032040

型号/Part Model

电堆/Stack

电流/A

电压/V

冷量/Q

温差/△T

尺寸/A

尺寸/B

规格书/SPEC.

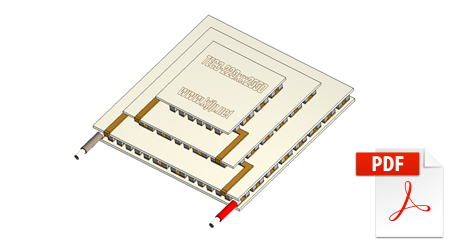

TEC3-229xx2550

299 P&N

4~8 A

16 V

14~27 W

95ºC

S25mm

S50mm

Part NO.:	TEC3-229042550 TEC3-229082550

型号/Part Model

电堆/Stack

电流/A

电压/V

冷量/Q

温差/△T

尺寸/A

尺寸/B

规格书/SPEC.

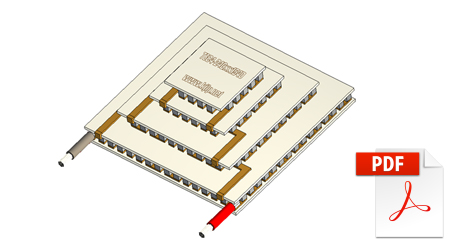

TEC4-246xx1540

246 P&N

3~6 A

14.8 V

14~24 W

105ºC

S15mm

S40mm

Part NO.:	TEC4-246031540 TEC4-246041540 TEC4-246061540

型号/Part Model

电堆/Stack

电流/A

电压/V

冷量/Q

温差/△T

尺寸/A

尺寸/B

规格书/SPEC.

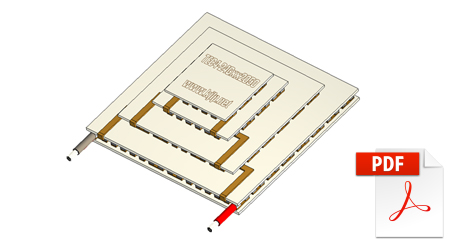

TEC4-246xx2050

246 P&N

6~8 A

14.8 V

18~29 W

105ºC

S20mm

S50mm

Part NO.:	TEC4-246062050 TEC4-246082050
